Everest-X

Everest-X is the most advanced power distributor in Shunyata Research’s history and the successor to the award-winning Everest 8000. It feeds clean power to a whole system while blocking noise from the power line and noise passed from one component to another.

Its patented and patent-pending technologies, among them TAPc, the NIC noise isolation chamber and the QR/BB instantaneous energy reserve, lower the noise floor so that music emerges from a quieter background with more immediacy and dynamics.

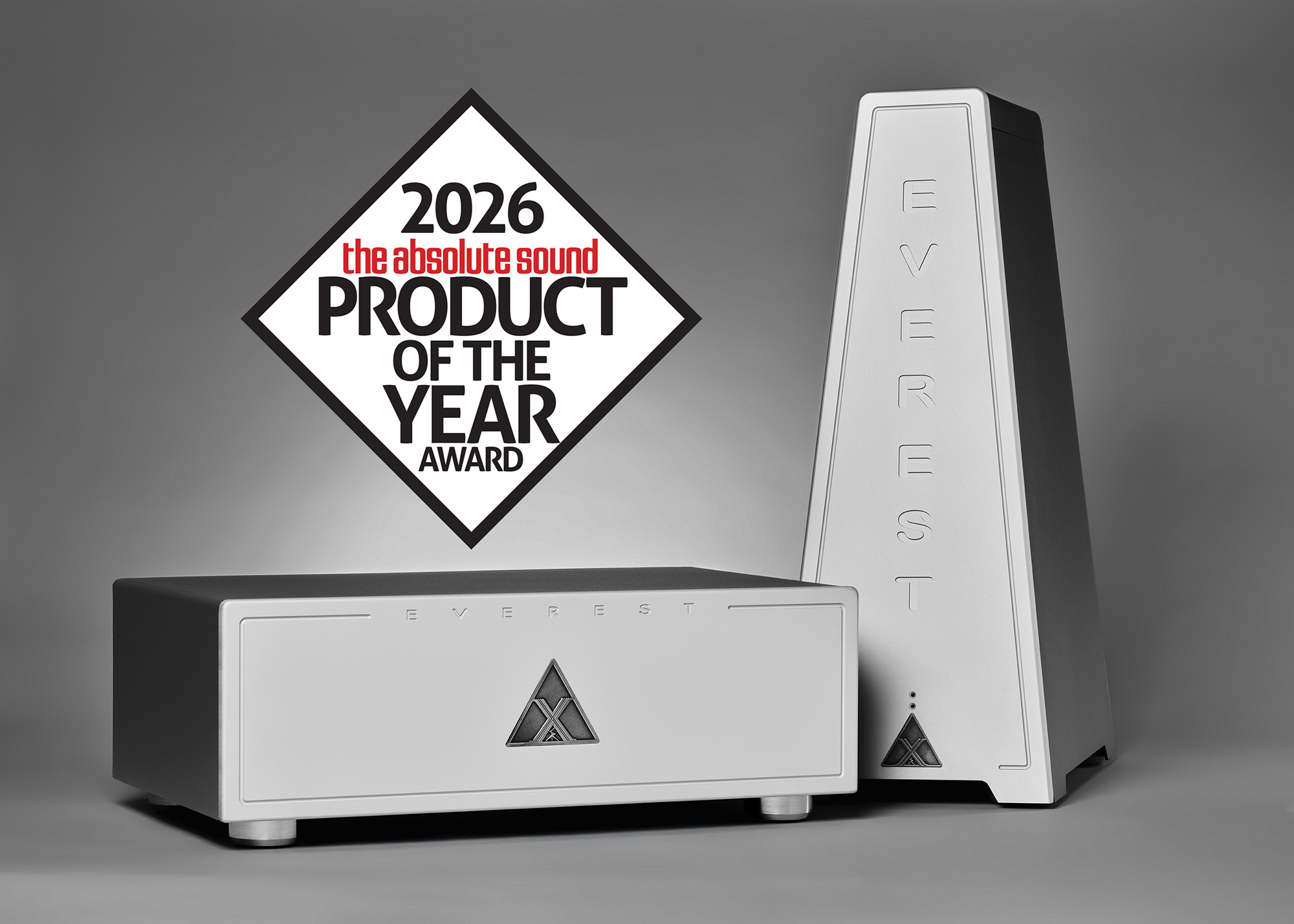

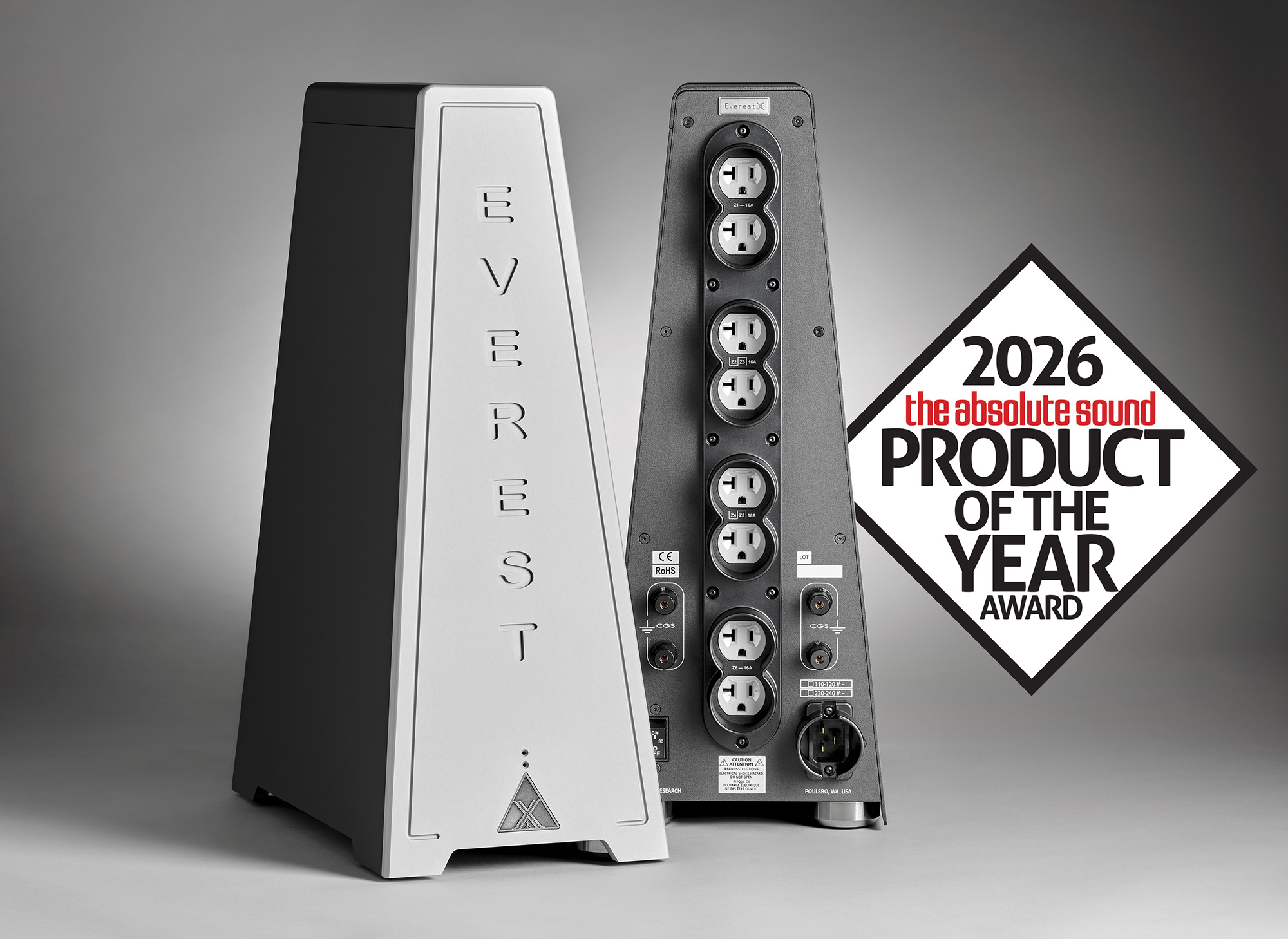

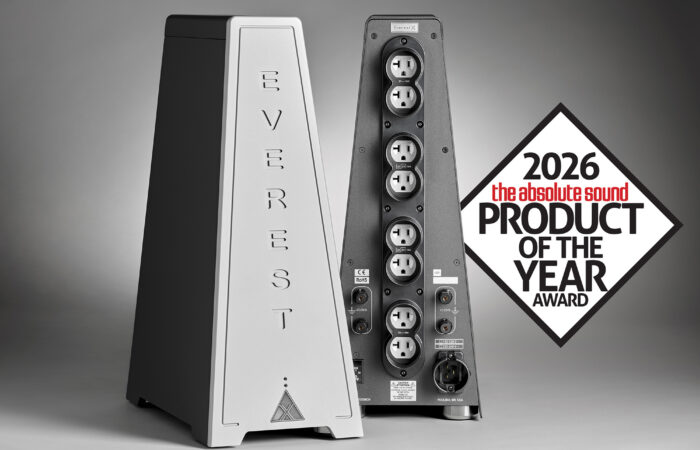

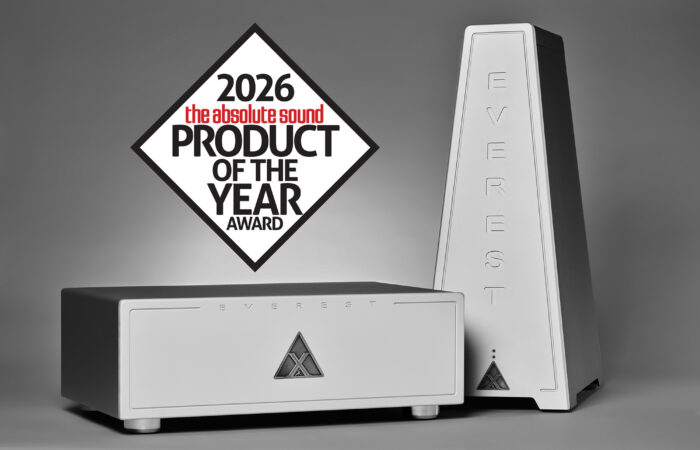

Everest-X comes as the original vertical tower or as a low-profile shelf model for standard audio racks; both are identical inside.

Input voltage

90–125 V AC (US)

Maximum continuous current

30 A (US)

Outlets

8 NEMA 5-20R CopperCONN Platinum, in 6 isolation zones

Inlet

IEC C19R

Noise suppression (100 kHz – 30 MHz)

More than 50 dB input to output; more than 60 dB zone to zone

Transient protection

40,000 A at 8/50 µs

Over-current protection

Hydraulic electromagnetic breaker

Wiring

8-gauge ArNi VTX buss system, 10-gauge ArNi VTX wiring

Construction

Aluminum and steel chassis, anodized aluminum faceplate, OFE copper ground terminals

Tower model

8.0″ W x 14.75″ D x 20.75″ H; 34 lbs

Shelf model

18″ W x 12.2″ D x 6.47″ H; 28 lbs
