Audiophile Network Switch, X Series
SuperSwitch X: 192 x 115 x 69 mm, 1.8 kg. Pro X PSU: 260 mm wide, 97 mm high, 4.85 kg.
The SuperSwitch X builds on the multi award-winning SuperSwitch Pro platform. Like the SuperSwitch, it is a dual-shielded audiophile network switch that sits just before your streamer, removing EMI and RFI noise before it can reach your DAC.

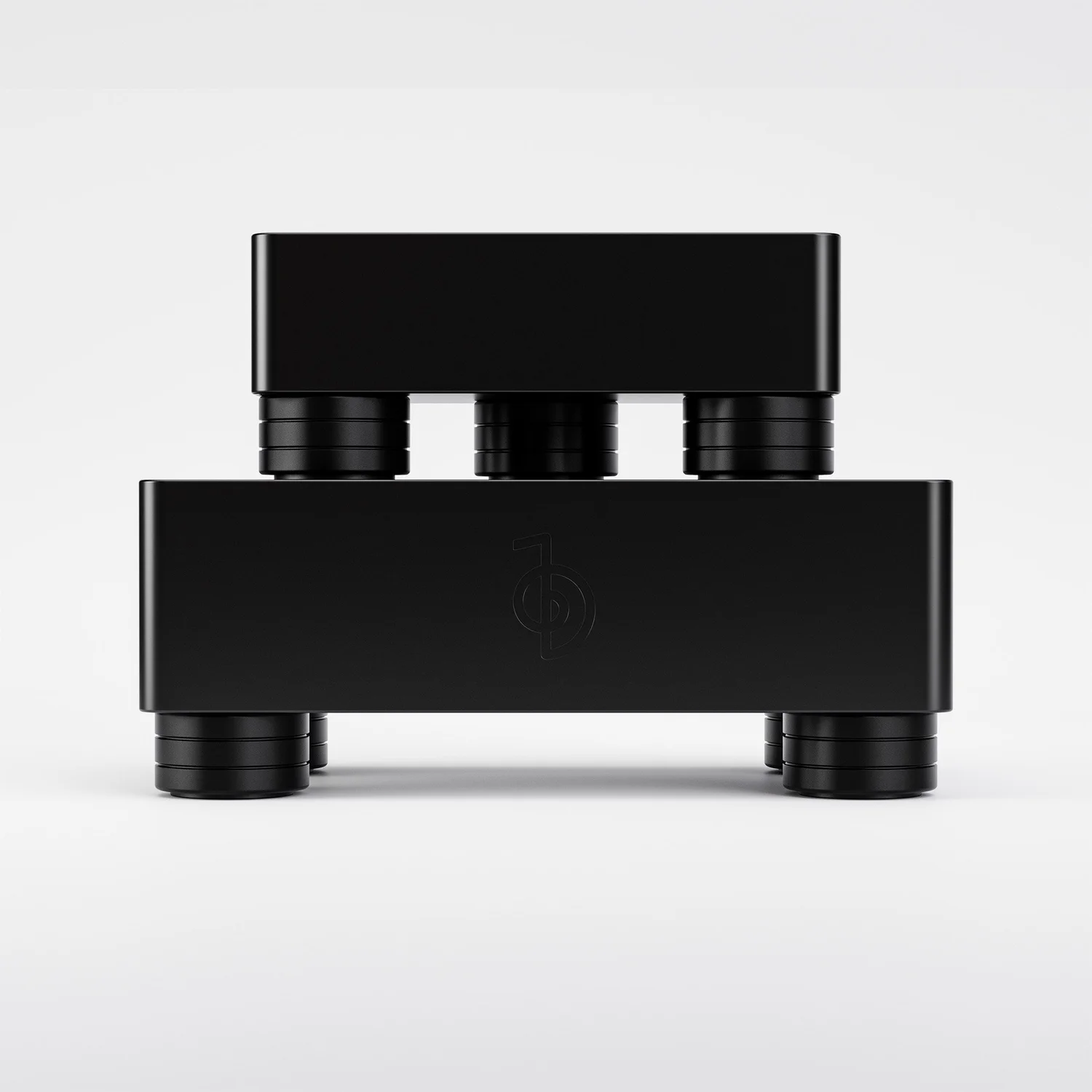

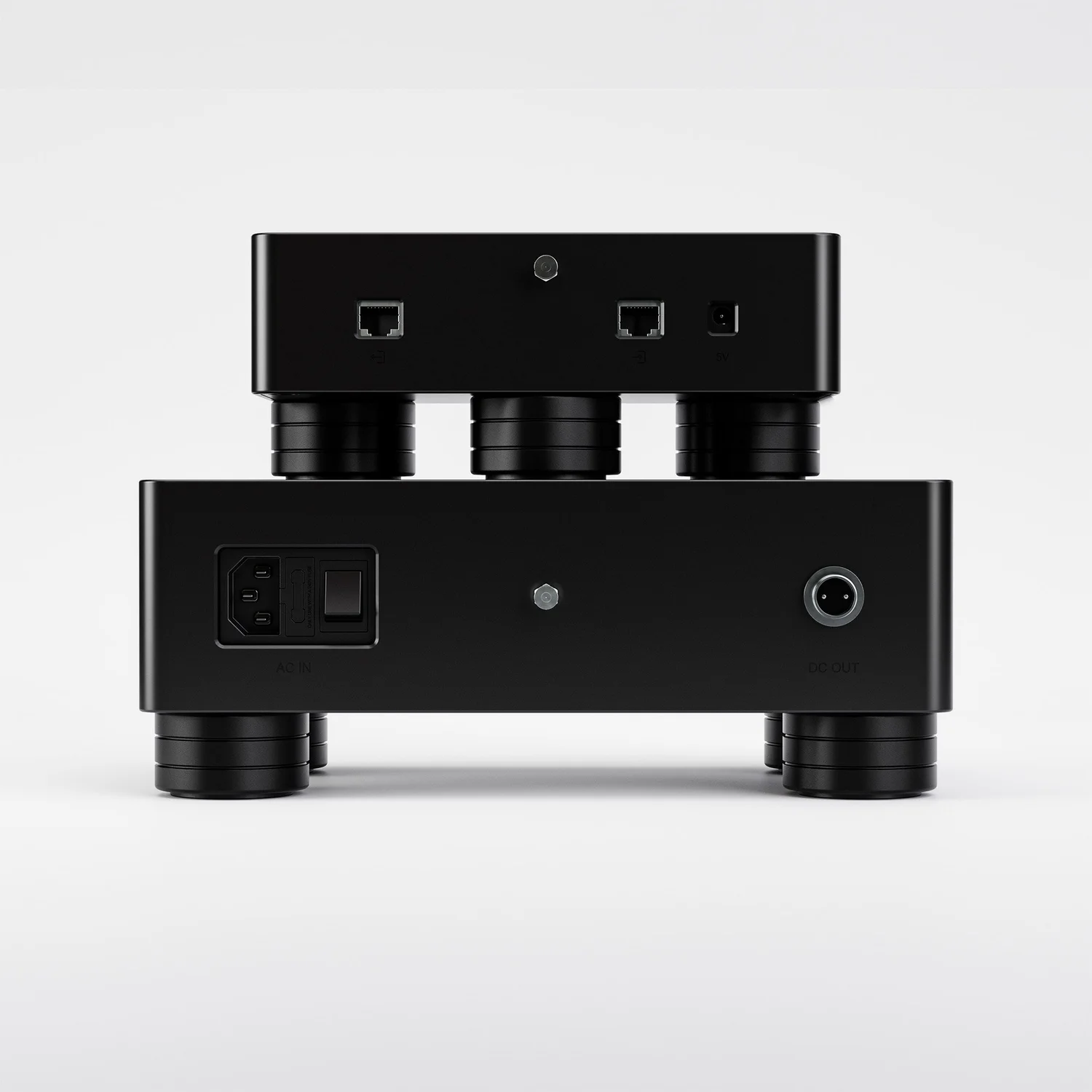

As the X suggests, its case is twice as thick, 10 mm instead of 5 mm, for more rigidity, almost double the weight and better shielding against radiated RFI. The circuitry is set in non-conductive resin to damp micro-vibrations, and aluminium and silicone feet add stability, with an optional upgrade to threaded Stack Audio Auva EQ isolators.

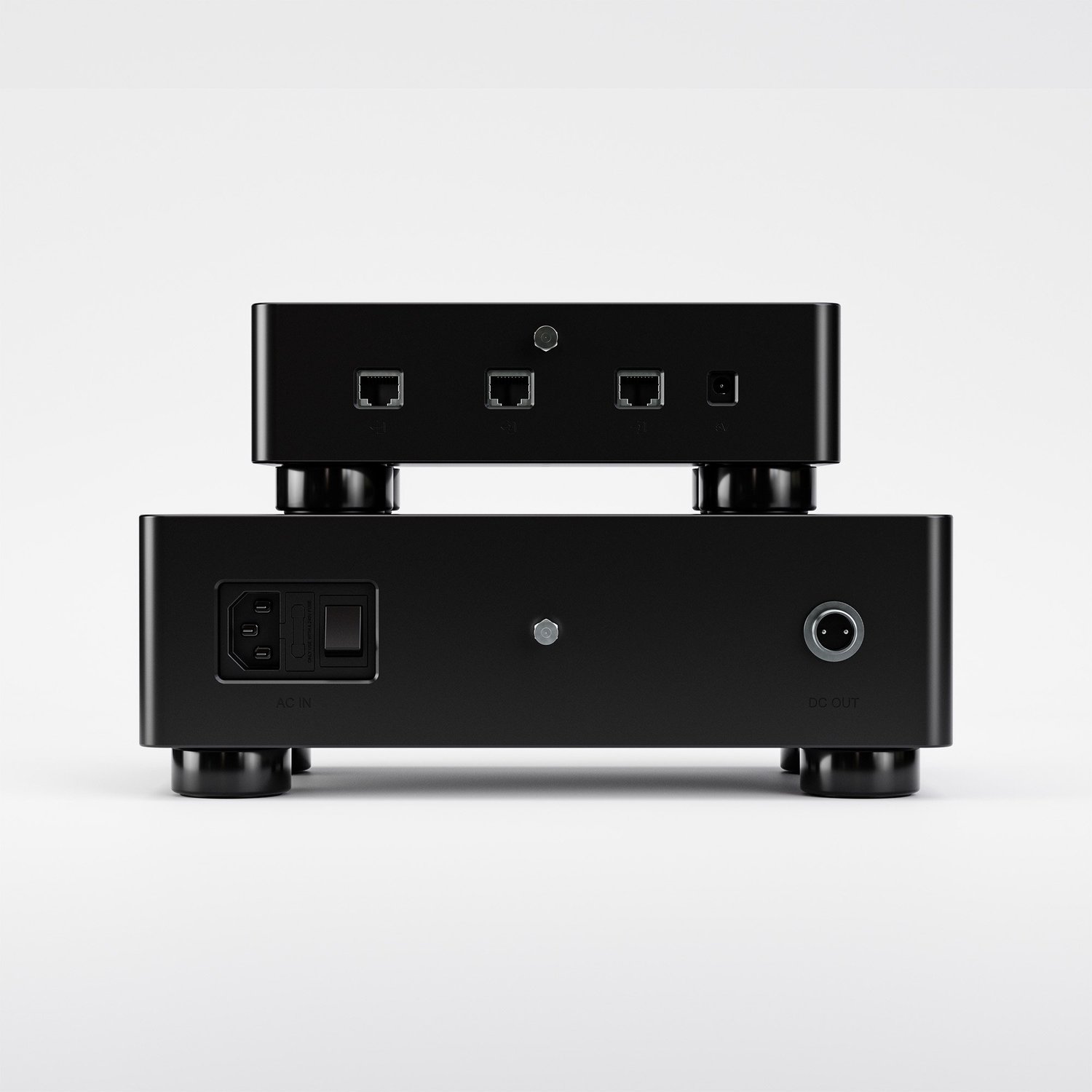

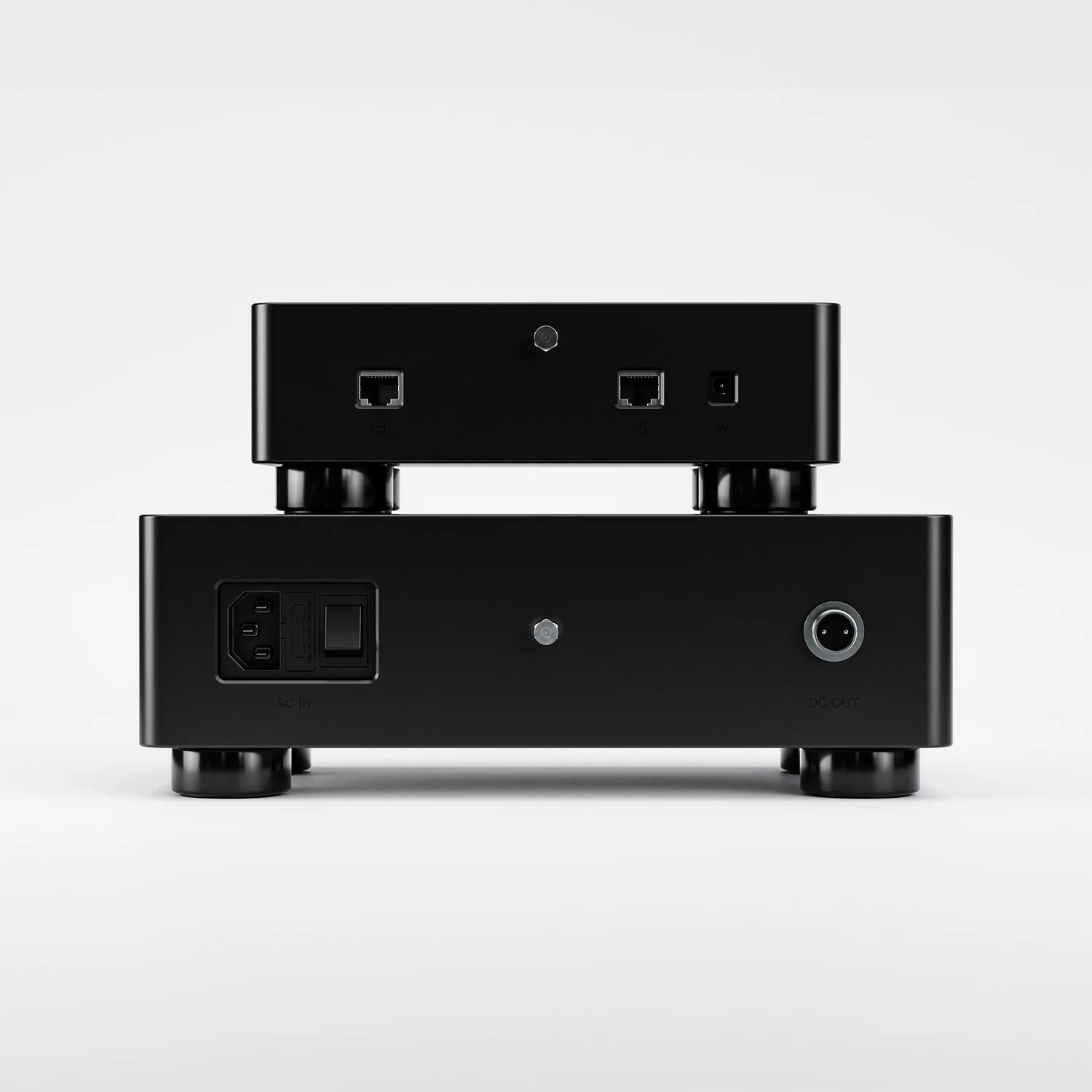

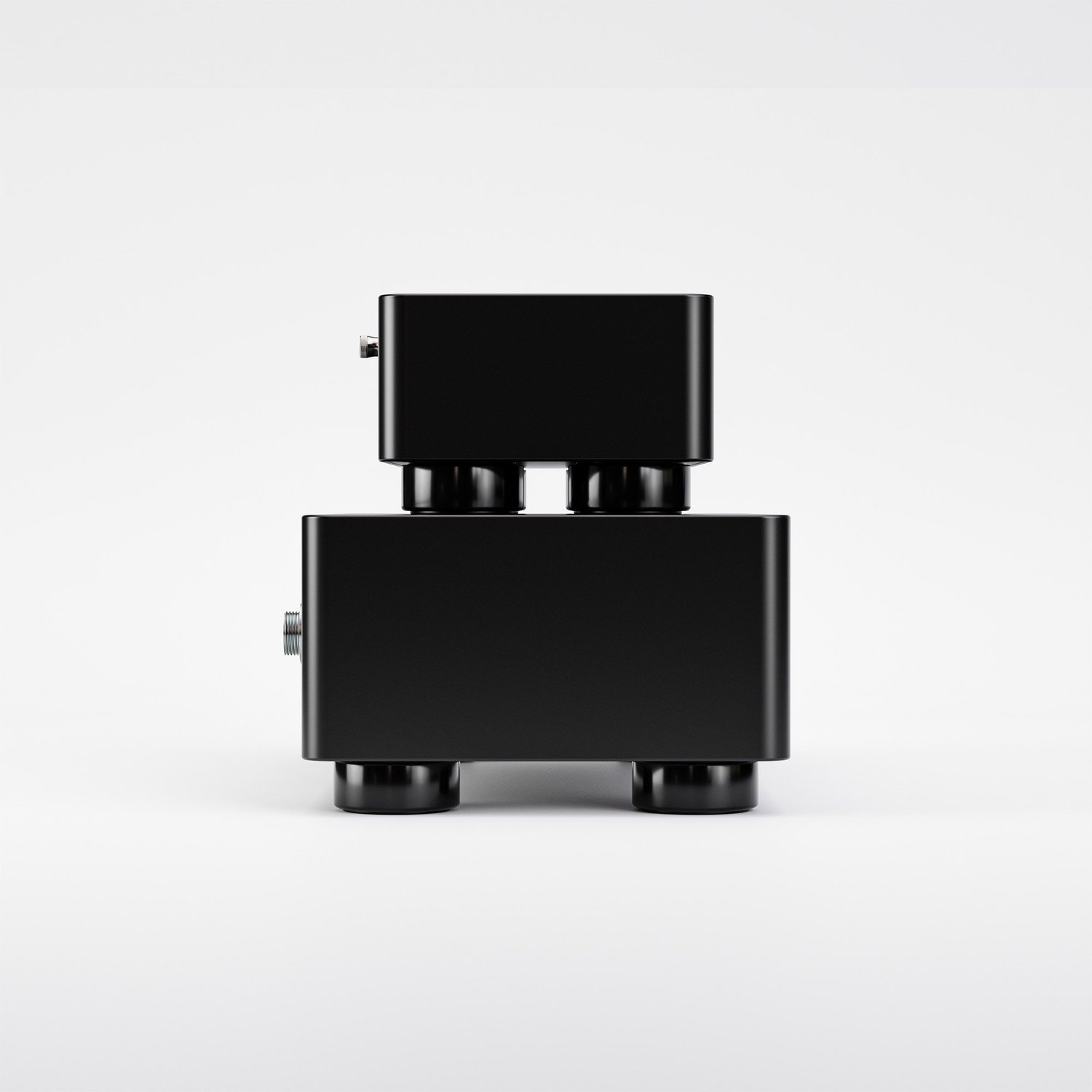

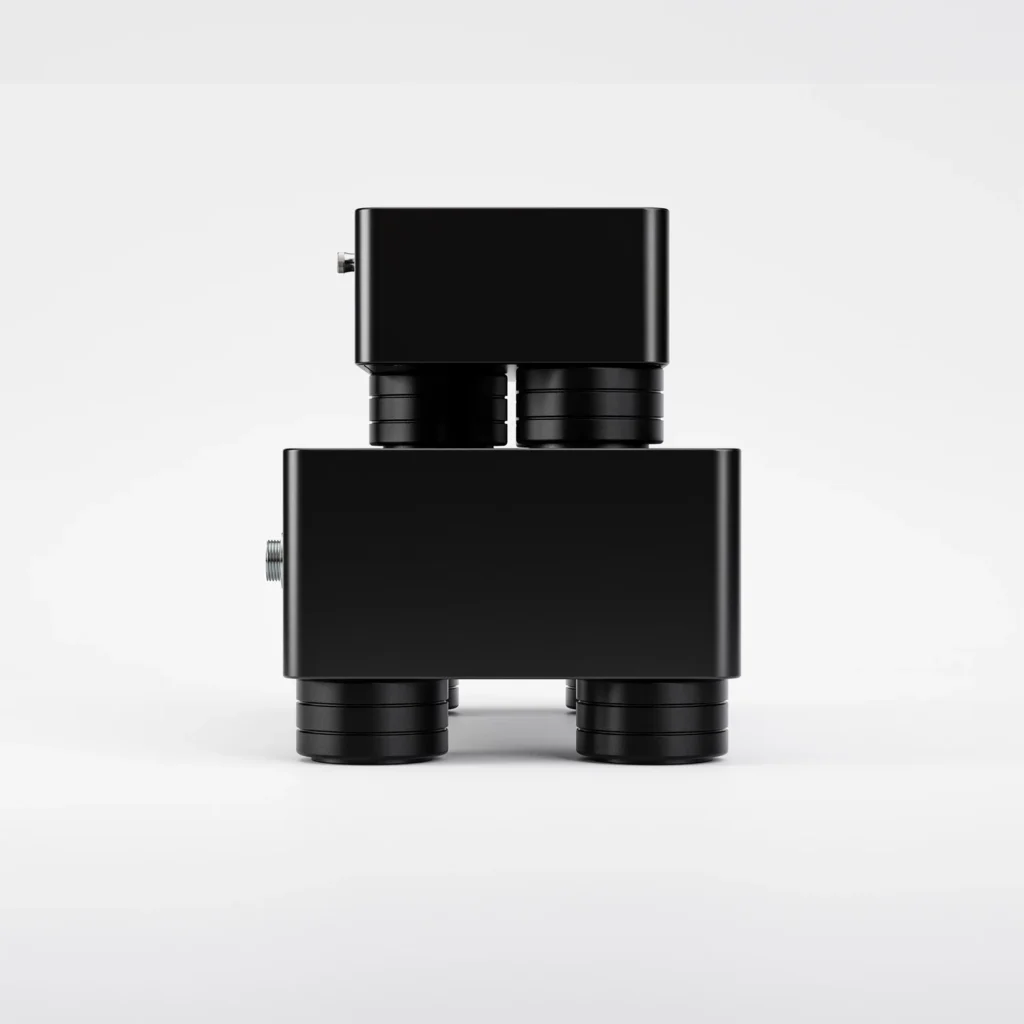

It comes with the Pro X PSU, an upgraded fully linear supply with a matching 10 mm case and a 25% larger audio-grade transformer. With the switch on top, 20 mm of aluminium separates the switch circuitry from the supply, and a 60 cm RakuDC PRO cable connects the two.
Type
Gigabit network switch, 2-port or 3-port (dual output)
Case
10 mm aluminium, copper-lined; vibration-damped circuit board; 4 mm grounding post (spade)
Power input
5 V DC (2.1 mm barrel)
Power supply
Pro X PSU: fully linear, 10 mm aluminium case, 25% larger audio-grade transformer; 60 cm RakuDC PRO DC cable included
Feet
Aluminium and silicone (3 on the SuperSwitch X, 4 on the Pro X PSU); optional Stack Audio Auva EQ isolators
SuperSwitch X size
192 mm W x 115 mm D x 69 mm H (80 mm with Auva feet); 1.8 kg (1.98 kg)
Pro X PSU size
260 mm W x 97 mm H (108 mm with Auva feet); 4.85 kg (5.11 kg)
