Audiophile Network Switch
SuperSwitch: 182 x 110 x 45 mm, 850 g. PRO PSU: 250 x 148 x 70 mm, 2.75 kg.

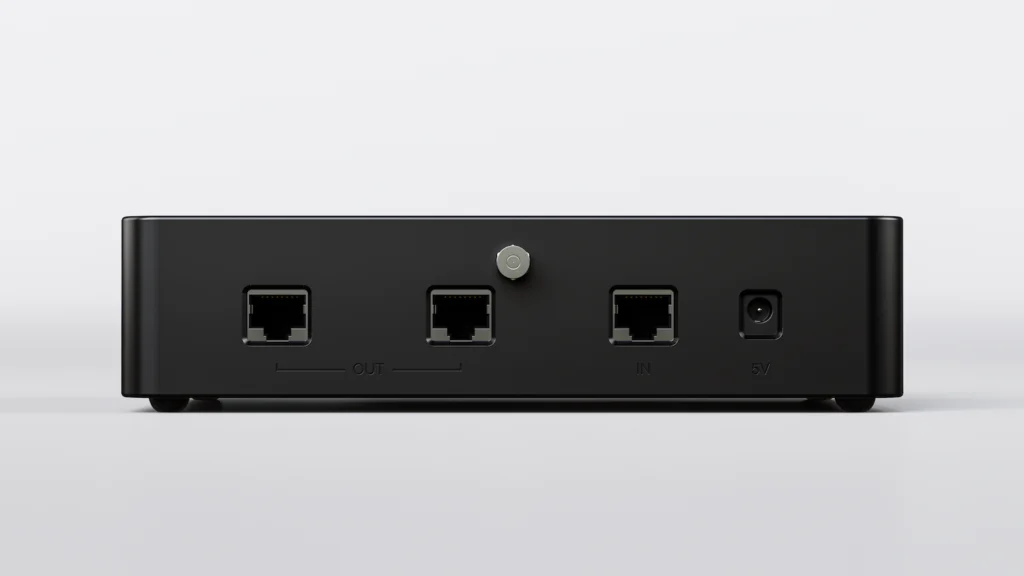

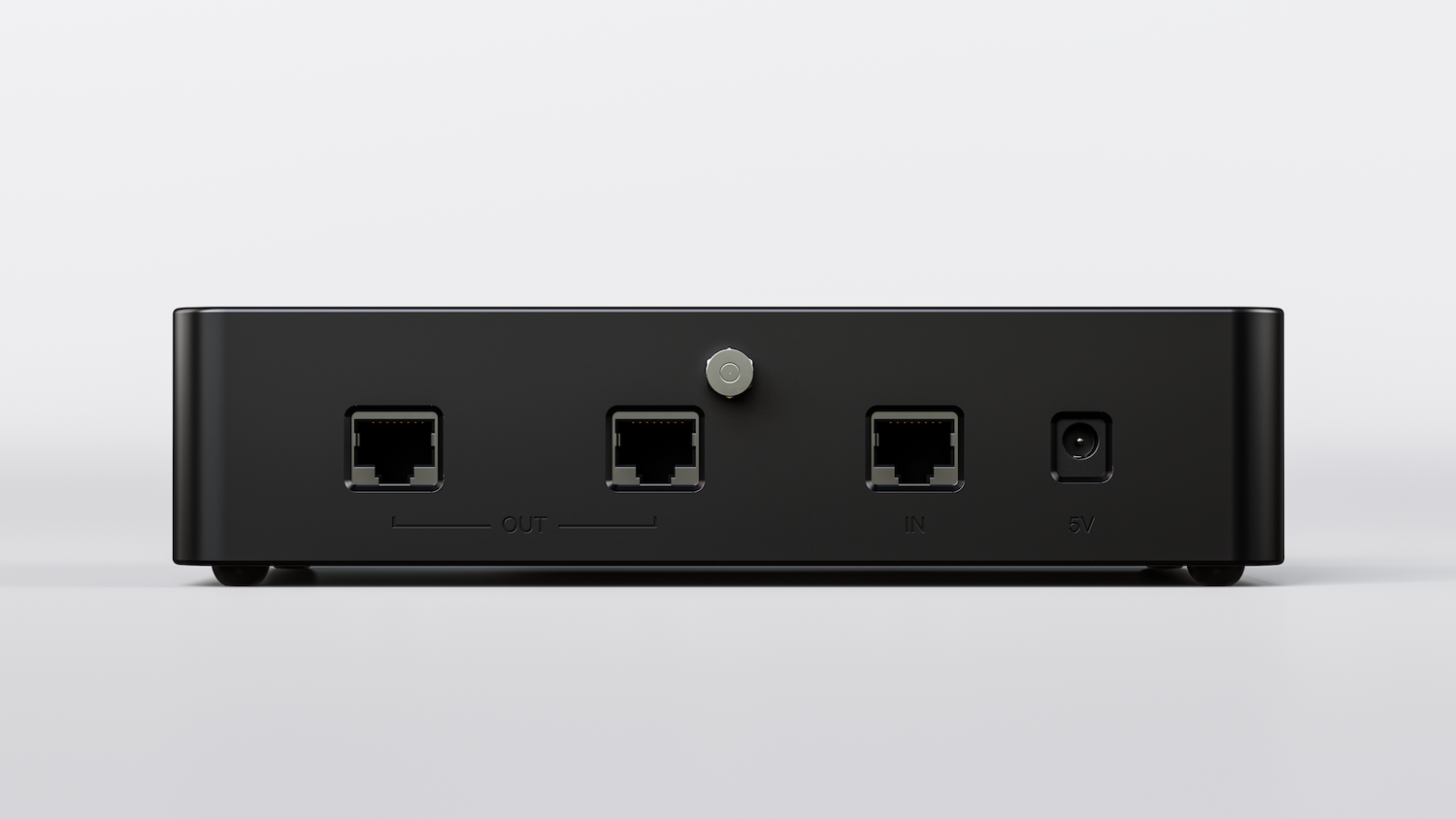

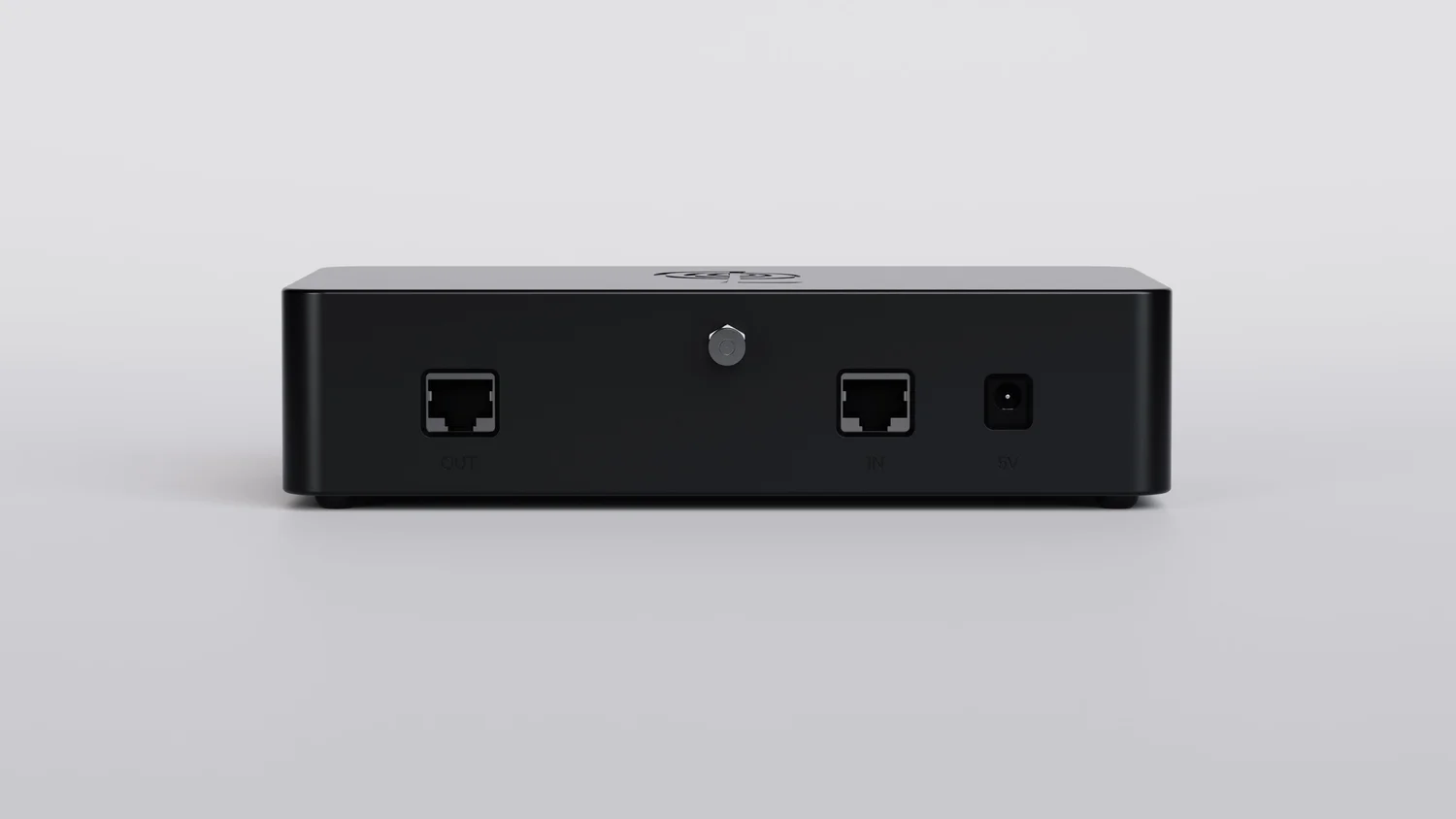

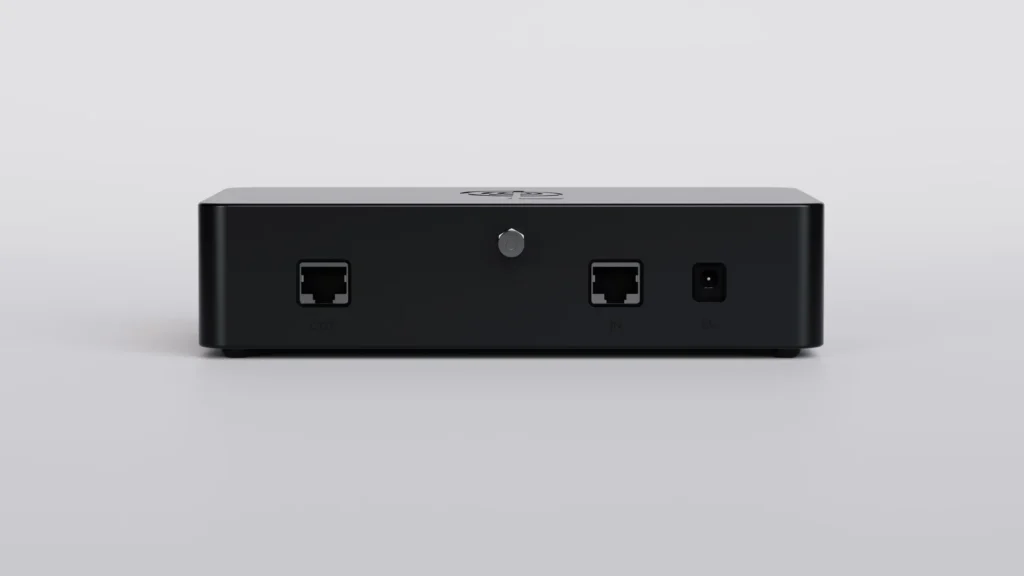

The multi award-winning SuperSwitch is a dual-shielded audiophile network switch, designed to sit just before your streamer. It comes in the original twin-port form and as a 3-port (dual output) model; Reiki Audio recommends the 2-port version unless you need the extra connection, since open ports are best avoided.
Two levels are offered. The Plus comes with the ultra-low-noise iFi iPower 2 power supply. The PRO adds Reiki Audio’s own PRO Linear PSU, a low-impedance, fully linear design in a milled aluminium case with no LEDs, which supplies stable, clean, low-noise DC power.

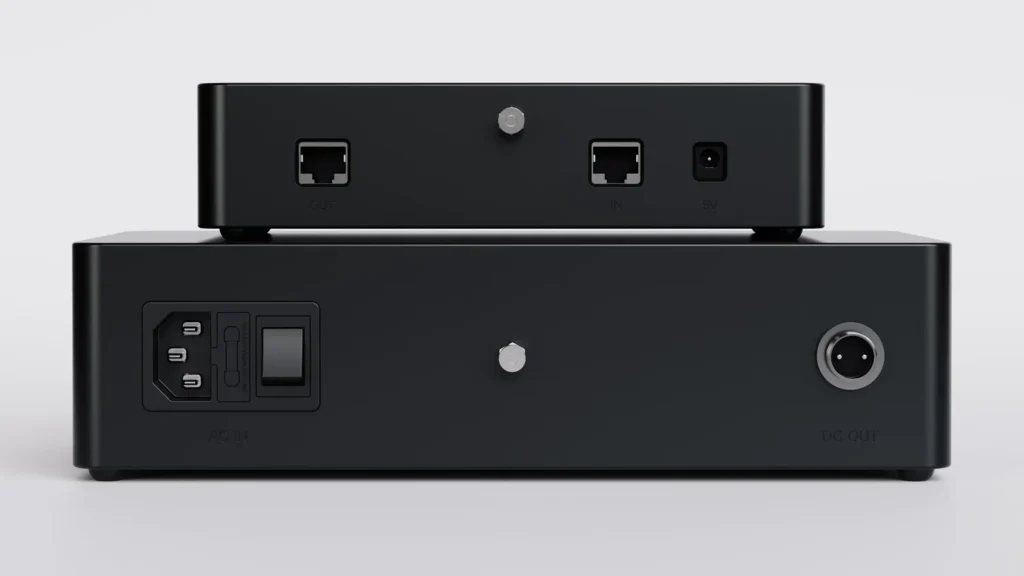

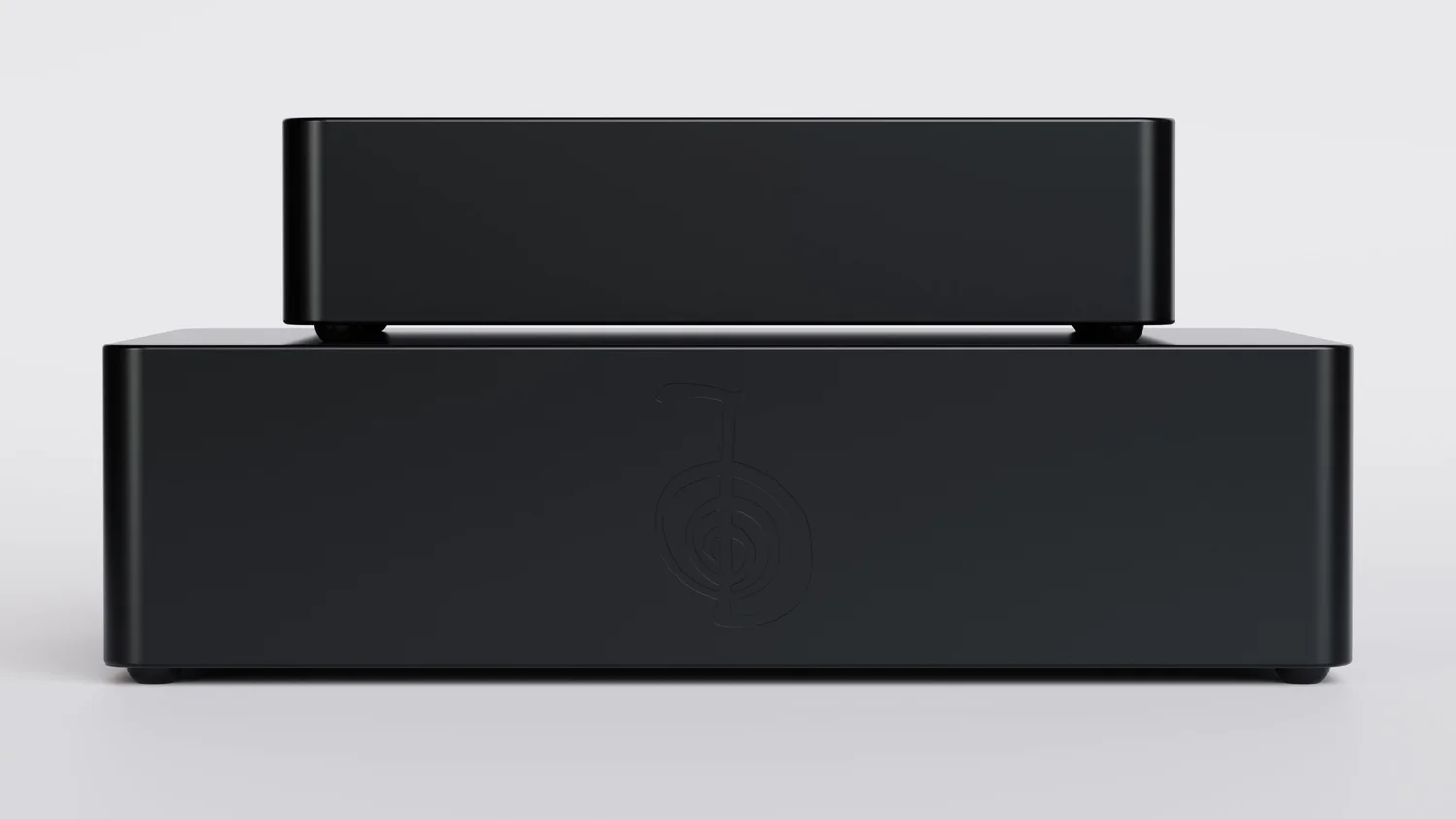

The SuperSwitch sits on top of the PRO PSU: the supply’s 5 mm aluminium top plate and the switch’s copper-lined 5 mm base plate put a layer of copper and 10 mm of aluminium between the switch circuitry and the power supply’s transformer.
Type
Gigabit network switch, 2-port or 3-port (dual output)
Case
5 mm aluminium, copper-lined, with 4 mm grounding post (spade)
Power input
5 V DC (2.1 mm barrel)
Power supply, Plus
iFi iPower 2, with the plug tip for your region
Power supply, PRO
PRO Linear PSU: fully linear, 5 mm aluminium case, 5 V DC output via GX16-2 socket, grounding post
Mains voltage
100–125 V or 220–240 V
SuperSwitch size
182 mm W x 110 mm D (with grounding post) x 45 mm H; 850 g
PRO PSU size
250 mm W x 148 mm D (with grounding post) x 70 mm H; 2.75 kg
