Mimesis Reference

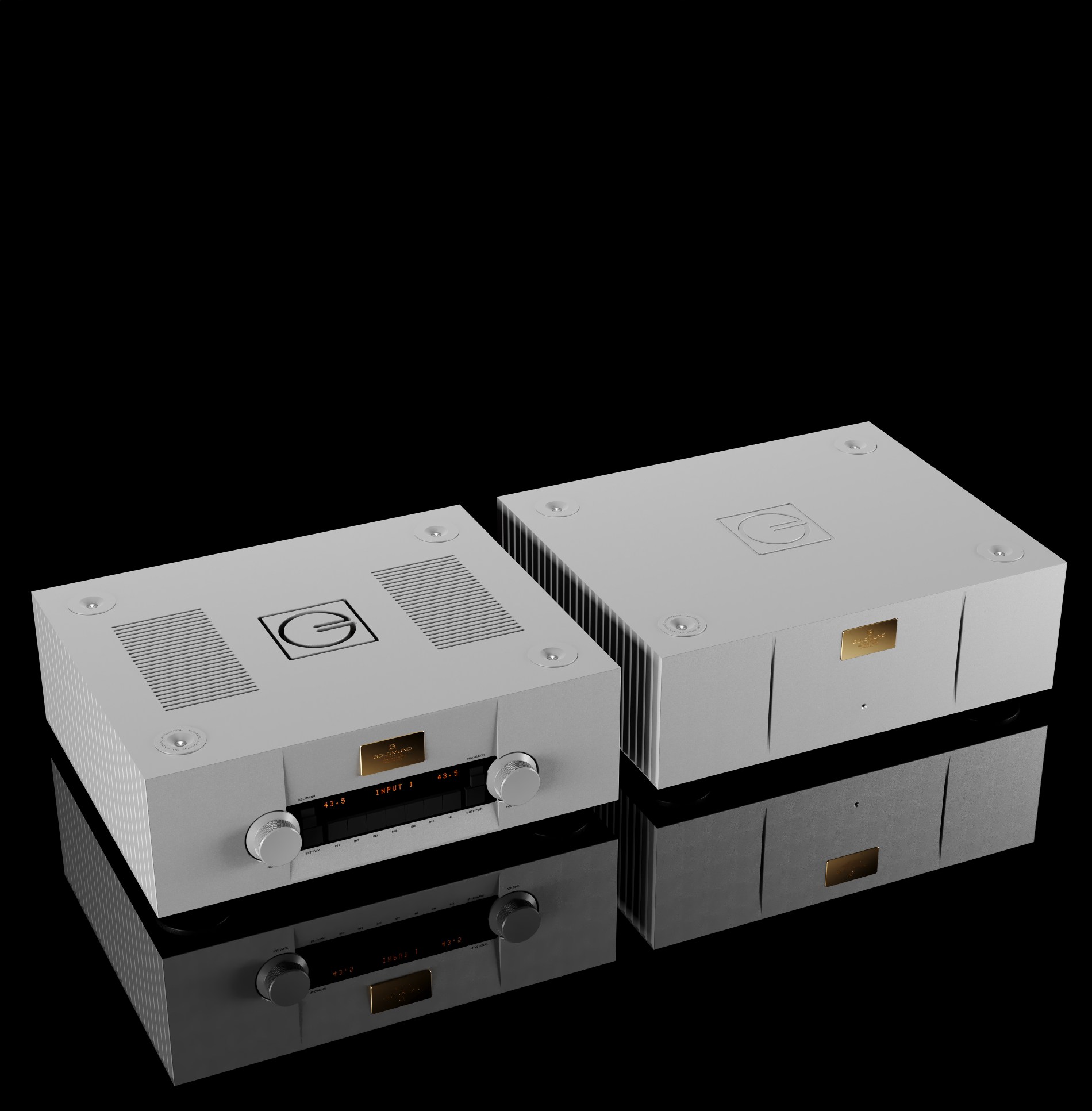

The Mimesis Reference is Goldmund’s reference analog preamplifier, with the preamplifier and its power supply in separate enclosures. Class A output stage drivers and carefully selected ultra-low-noise components keep harmonic, intermodulation and transient intermodulation distortion to a minimum.

The power supply was completely redesigned, with separate analog and digital circuits, custom audio-grade transformers and a dedicated supply for each channel, for better channel separation. A heat sink machined in-house cools the supplies, and every low-noise op-amp on the audio board has its own heat sink, machined from a single piece of aluminum.

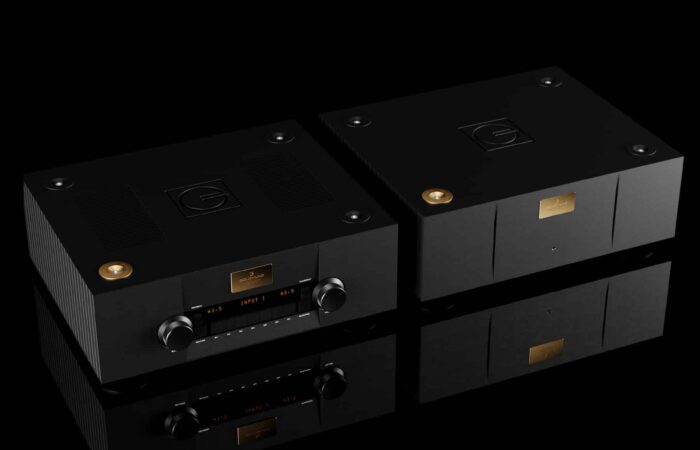

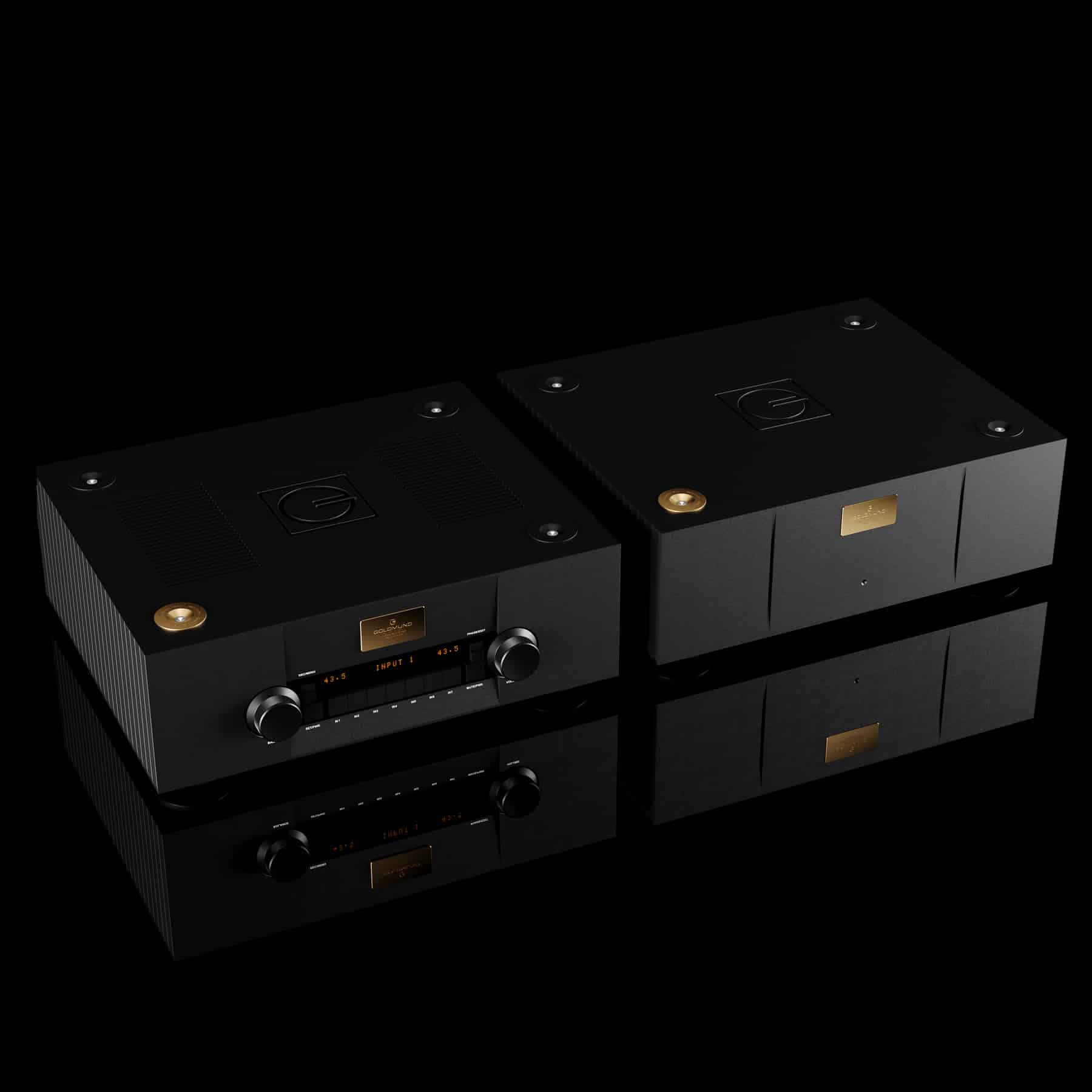

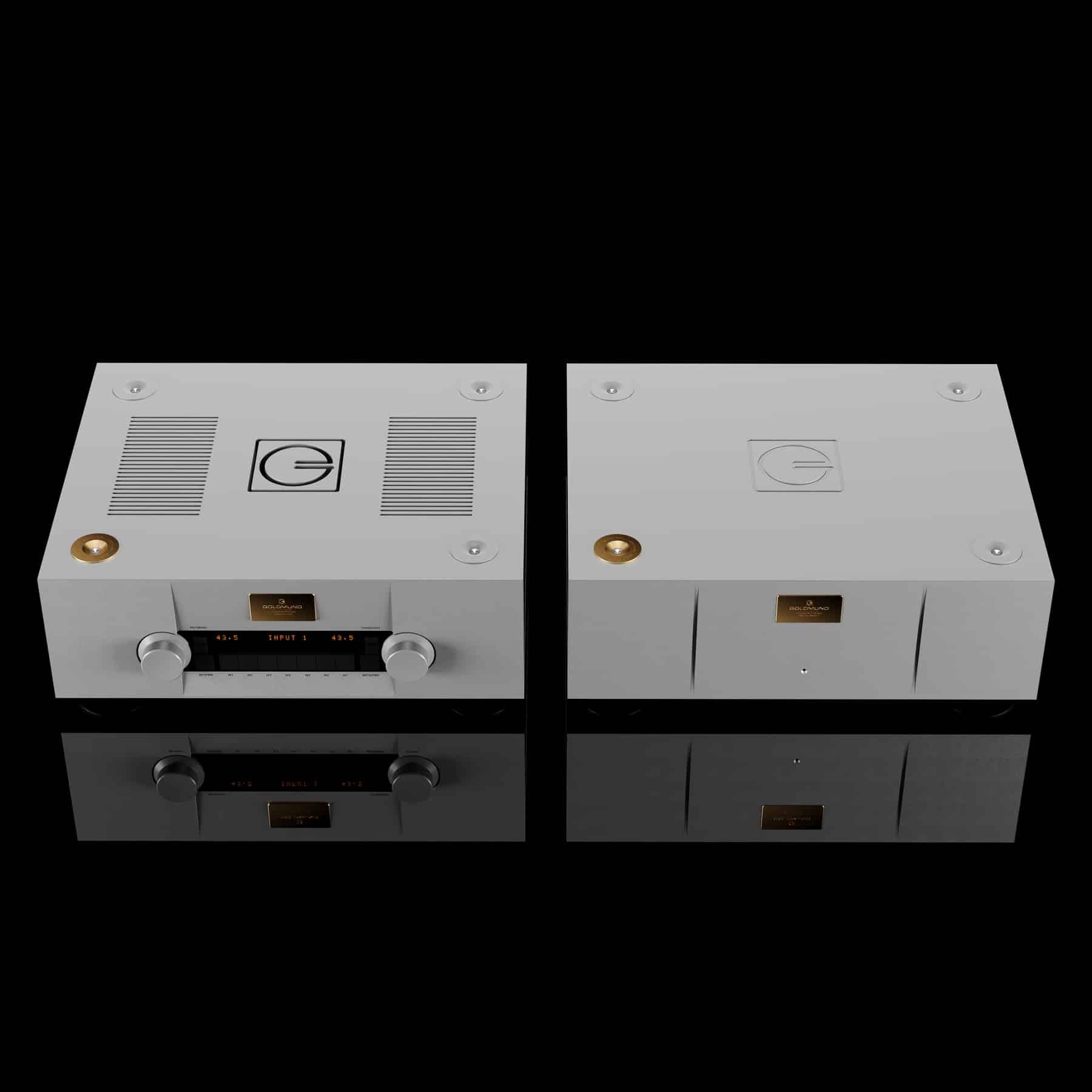

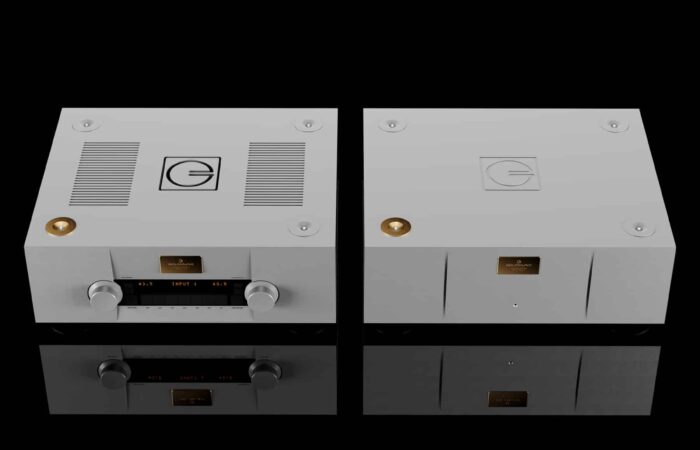

The 2023 design has a screwless top panel and 12 mm panels throughout, in Goldmund’s silver grey or matte black, with a gold or matching top ring.

Type

Analog preamplifier with a separate power supply

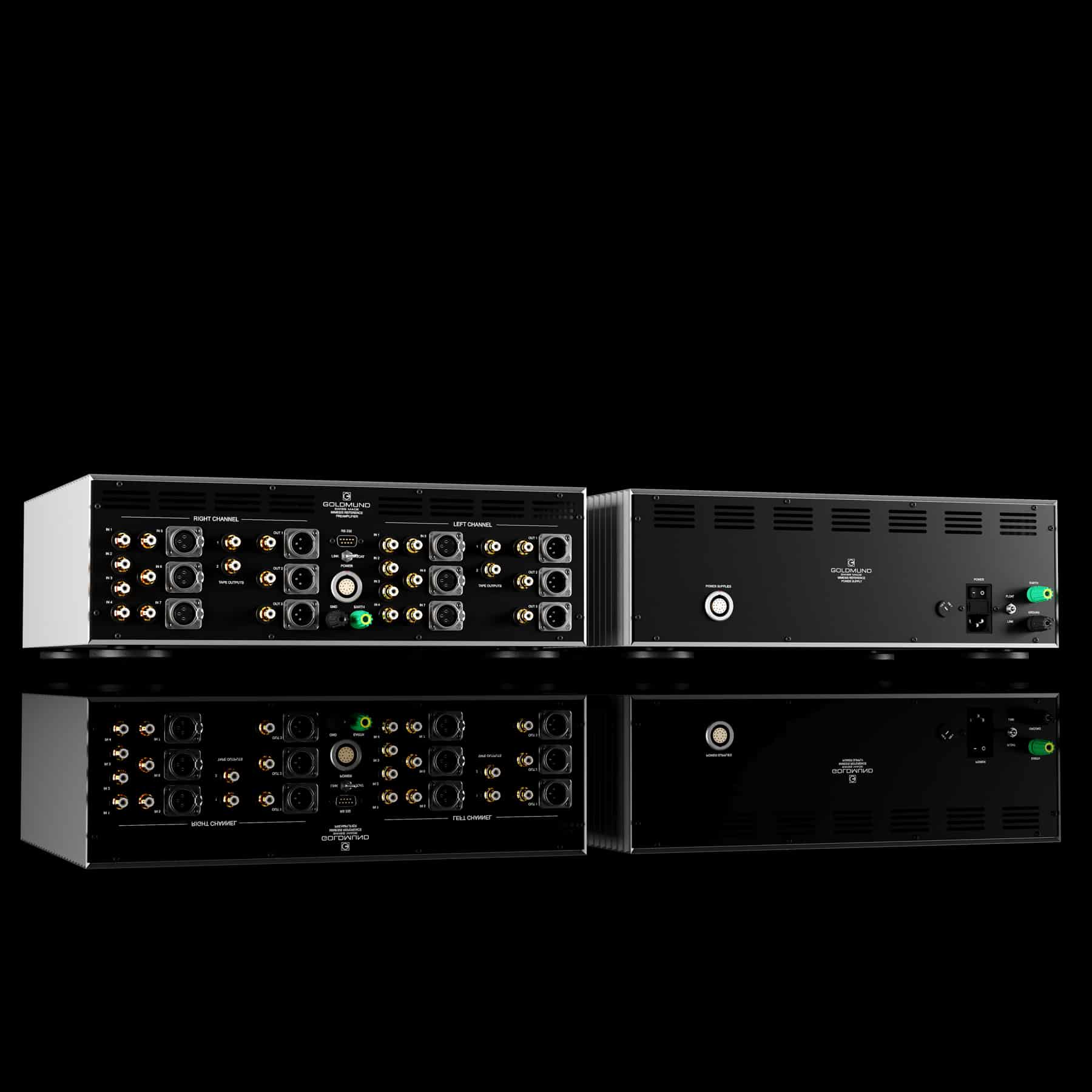

Inputs

Seven line inputs, balanced XLR and unbalanced RCA, each adjustable from -12 to +12 dB; input impedance 39 kOhms

Outputs

Balanced XLR and unbalanced RCA (line and tape); output impedance 50 ohms

Maximum output

9.6 V RMS balanced; 4.8 V RMS unbalanced

Frequency response

20 Hz – 20 kHz ±0 dB; 0.2 Hz – 1.2 MHz ±3 dB

Distortion

THD 0.0001 % balanced, 0.0002 % unbalanced; IMD 0.0001 % balanced, 0.0002 % unbalanced

Signal-to-noise ratio

Above 126 dB (above 136 dB A-weighted)

Speed

Slew rate 2,500 V/µs; rise time below 400 ns

Power

115 V or 230 V; 70 W maximum consumption

Dimensions

Preamplifier 44 W x 16 H x 40.6 D cm (17.3 x 6.3 x 16 in), 20 kg (44 lb); power supply 44 W x 16 H x 39 D cm (17.3 x 6.3 x 15.4 in), 25 kg (55 lb)

Finishes

Silver grey or matte black; a gold top ring to order. Contact us for availability and lead time.

Documents

Technical specifications (PDF, goldmund.com)
User manual (PDF, goldmund.com)
