DV2i

The DV2i is EMM Labs’ integrated converter: a 16x DSD (DSD1024) digital-to-analog converter, like the flagship DA2i, with a built-in network streamer. Its proprietary discrete dual differential DACs feed a newly designed Class A analog output stage.

The MDAT2 signal processing works in real time with the 16x DSD DACs, while MFAST frequency acquisition and the MCLK3 asynchronous clock keep jitter extremely low. The VControl volume system attenuates without re-quantizing, so the DV2i can drive a power amplifier directly.

The streamer, on its own isolated power supply, plays from Roon, Spotify Connect, Tidal Connect, Qobuz, Deezer and V-Tuner, with DSD, 2x DSD, DXD and MQA. The USB and network inputs are galvanically isolated, and an EMM Optilink input connects the TXi transport. Designed and built in Canada.

Type

Integrated digital-to-analog converter and network streamer

Converters

16x DSD (DSD1024) discrete dual differential DACs (MDAC2); Class A output stage

Signal processing

MDAT2, with MFAST frequency acquisition and the MCLK3 asynchronous clock

Volume

VControl, with high/low output gain

Digital inputs

EMM Optilink (CD/SACD), AES/EBU, coaxial, Toslink, USB audio, network

Formats

Up to 24-bit/192 kHz and DSD on all inputs; 2x DSD, DXD and MQA through USB and the network

Streaming

Roon, Spotify Connect, Tidal Connect, Qobuz, Deezer, V-Tuner, DLNA/UPnP

Analog outputs

Balanced XLR and unbalanced RCA

Output levels

XLR 7.0 V (high) or 4.0 V (low); RCA 3.5 V or 2.0 V

Output impedance

300 ohms balanced; 150 ohms unbalanced

Power

Resonant-mode power supply; 100, 115 or 230 V, 50/60 Hz; 30 W maximum

Dimensions

438 W x 400 D x 161 H mm (17.2 x 15.7 x 6.3 in); 16 kg (35 lb)

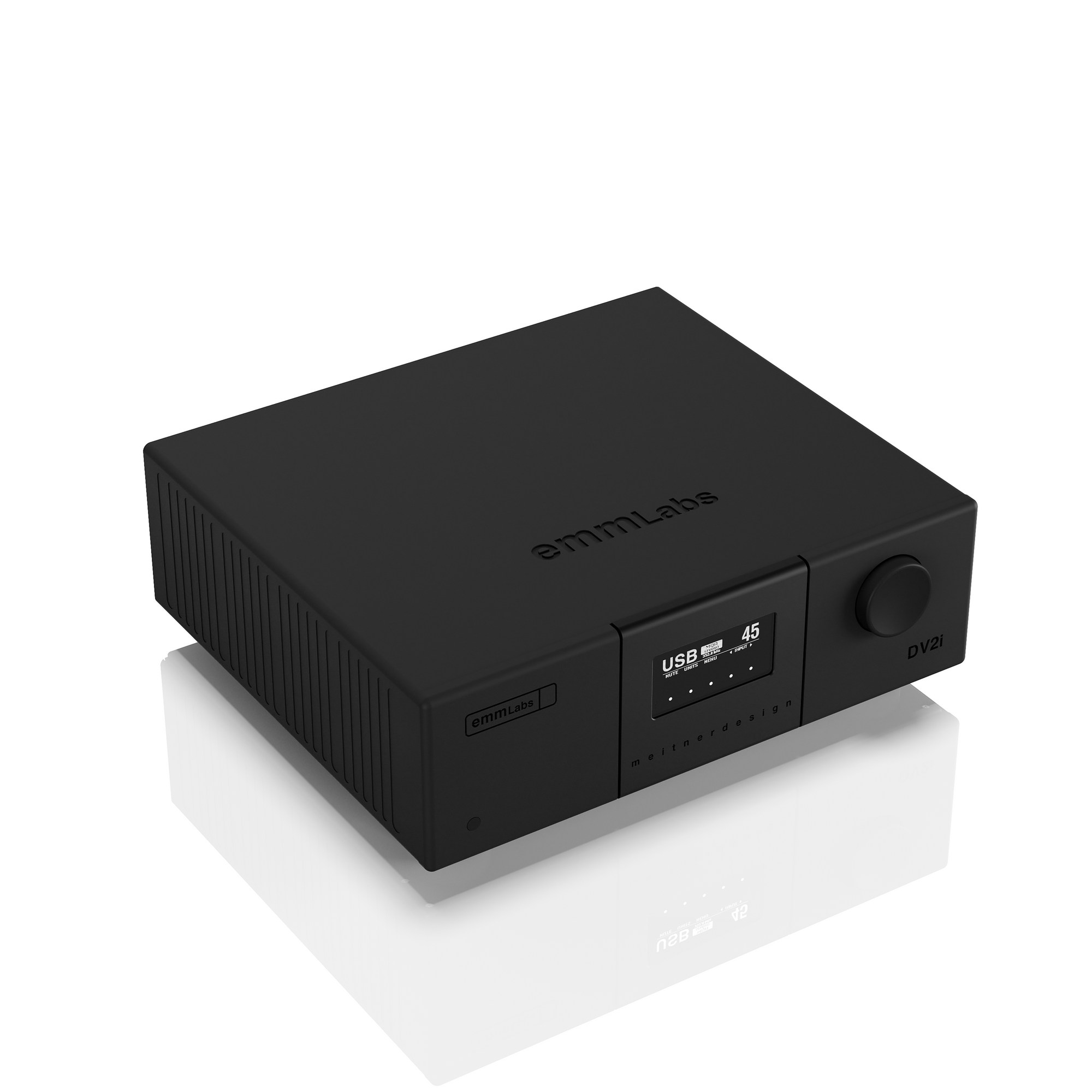

Finishes

Silver with black insert, or all black. Contact us for availability and lead time.

Documents

Brochure (PDF, emmlabs-meitner.com)
User manual (PDF, emmlabs-meitner.com)
