PREi

The PREi is EMM Labs’ most advanced analog preamplifier, following the Meitner PA6i, the multi-award-winning PRE2 and the flagship EMM Labs Pre. Fully discrete, dual-balanced signal paths, contactless switching and the software-driven MVControl³ all-analog volume control give it remarkable transparency.

Its Meitner Audio Architecture circuits are designed in-house and powered by the third-generation MXPower³ supply. Custom MCeraTek ceramic circuit boards preserve low-level detail, and proprietary equalization and Class A amplification drive any load without loss.

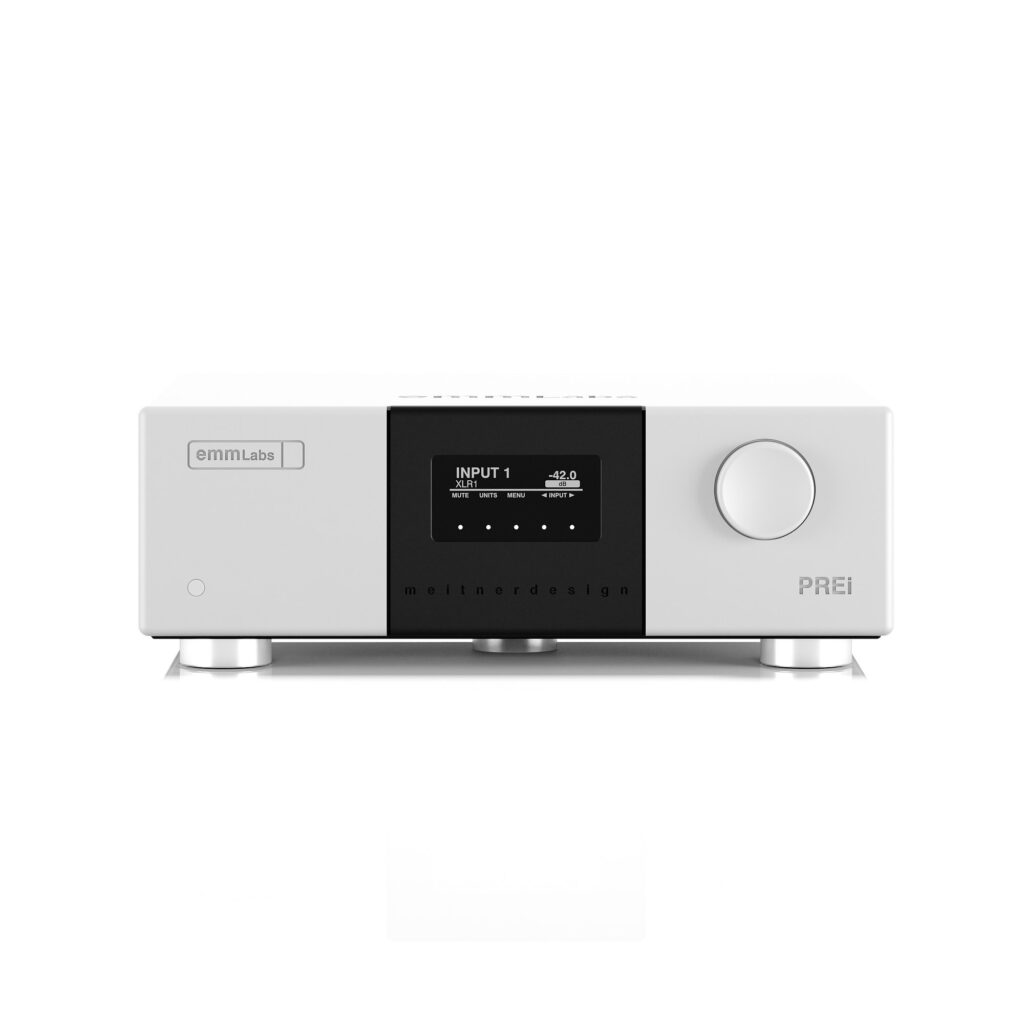

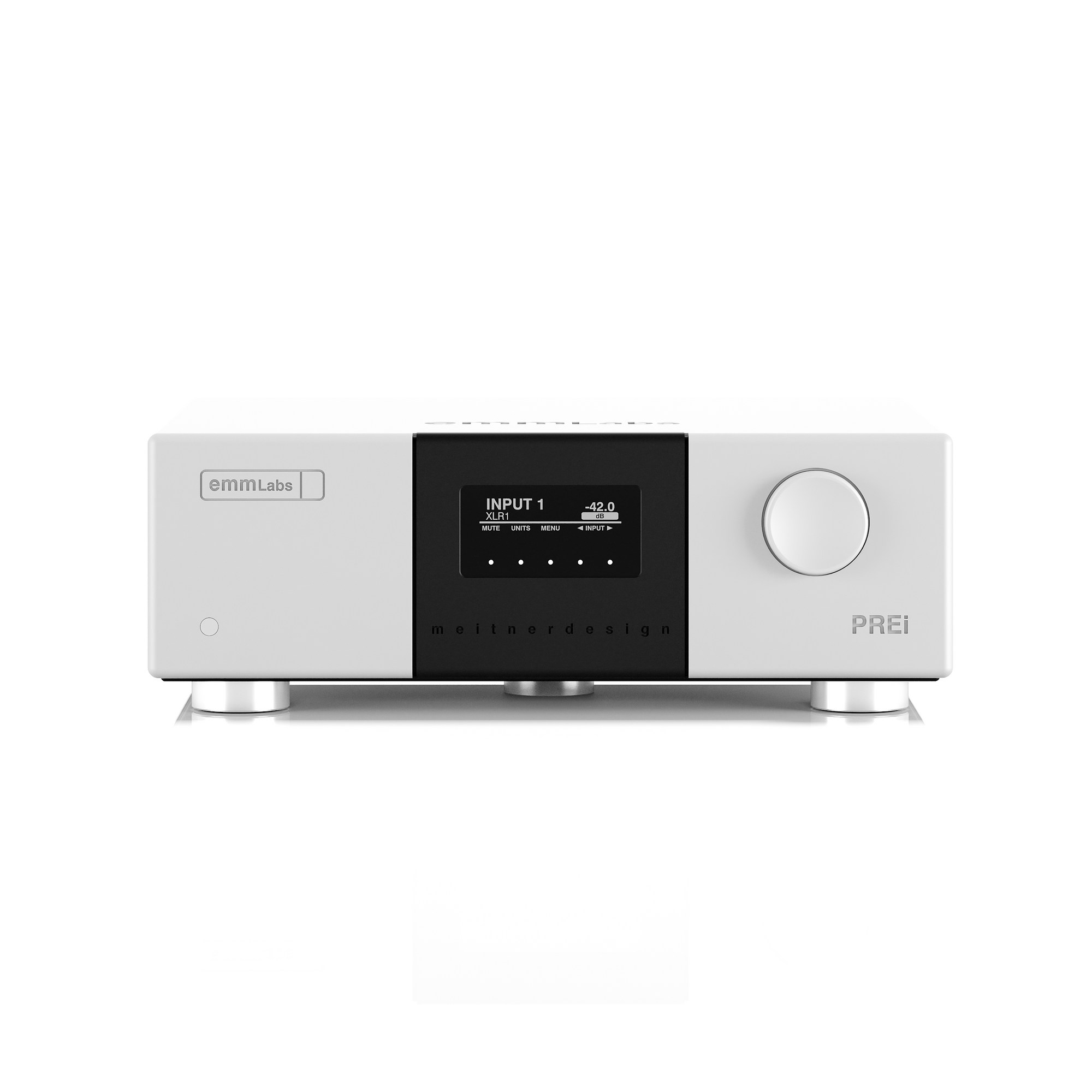

A large OLED display, touch-panel controls, programmable inputs with three volume presets each, and a machined aluminum remote complete the precision-machined chassis. Designed and manufactured in Canada.

Type

Stereo analog preamplifier

Inputs

Three balanced XLR and three single-ended RCA

Outputs

Two balanced XLR and one single-ended RCA

Gain

+6 dB

Signal-to-noise ratio

Better than 118 dB at 4 V RMS output (unweighted, 200 kHz bandwidth)

THD+N

Better than 0.01 % across the audio band

Input impedance

40 kOhms balanced; 20 kOhms single-ended

Output impedance

150 ohms balanced; 75 ohms single-ended

Volume

MVControl³ all-analog volume control

Controls

OLED display with XZoom, touch panel, machined aluminum infrared remote, RS232

Power

MXPower³ resonant-mode supply; 85–260 V, 50/60 Hz; 40 W maximum

Dimensions

438 W x 381 D x 102 H mm (17.2 x 15 x 4 in); 17.6 kg (39 lb)

Finishes

Silver with black insert, or all black; plated finishes on request. Contact us for availability and lead time.

Documents

Brochure (PDF, emmlabs-meitner.com)
User manual (PDF, emmlabs-meitner.com)
